The project commenced with the initial setup of Raspberry Pi OS Lite on the device, followed by the configuration of a static IP address for reliable network presence. The external HDD was then connected via a powered USB hub and configured with appropriate ownership and permissions (chown -R pihq:pihq /mnt/PIHQ_Storage, chmod -R 775 /mnt/PIHQ_Storage) to ensure secure data handling.

Docker and Docker Compose were installed to facilitate containerization. File Browser was deployed as a Docker container, making it accessible on an internal port (e.g., 8081). For network security, UFW was configured to deny incoming by default, with explicit rules to allow SSH, Samba traffic, and File Browser's direct local access port 8081. Nginx Proxy Manager (NPM) was deployed as a Docker container, providing a web-based interface for managing reverse proxy configurations and SSL certificates. SSH key-based authentication was set up for secure remote administration.

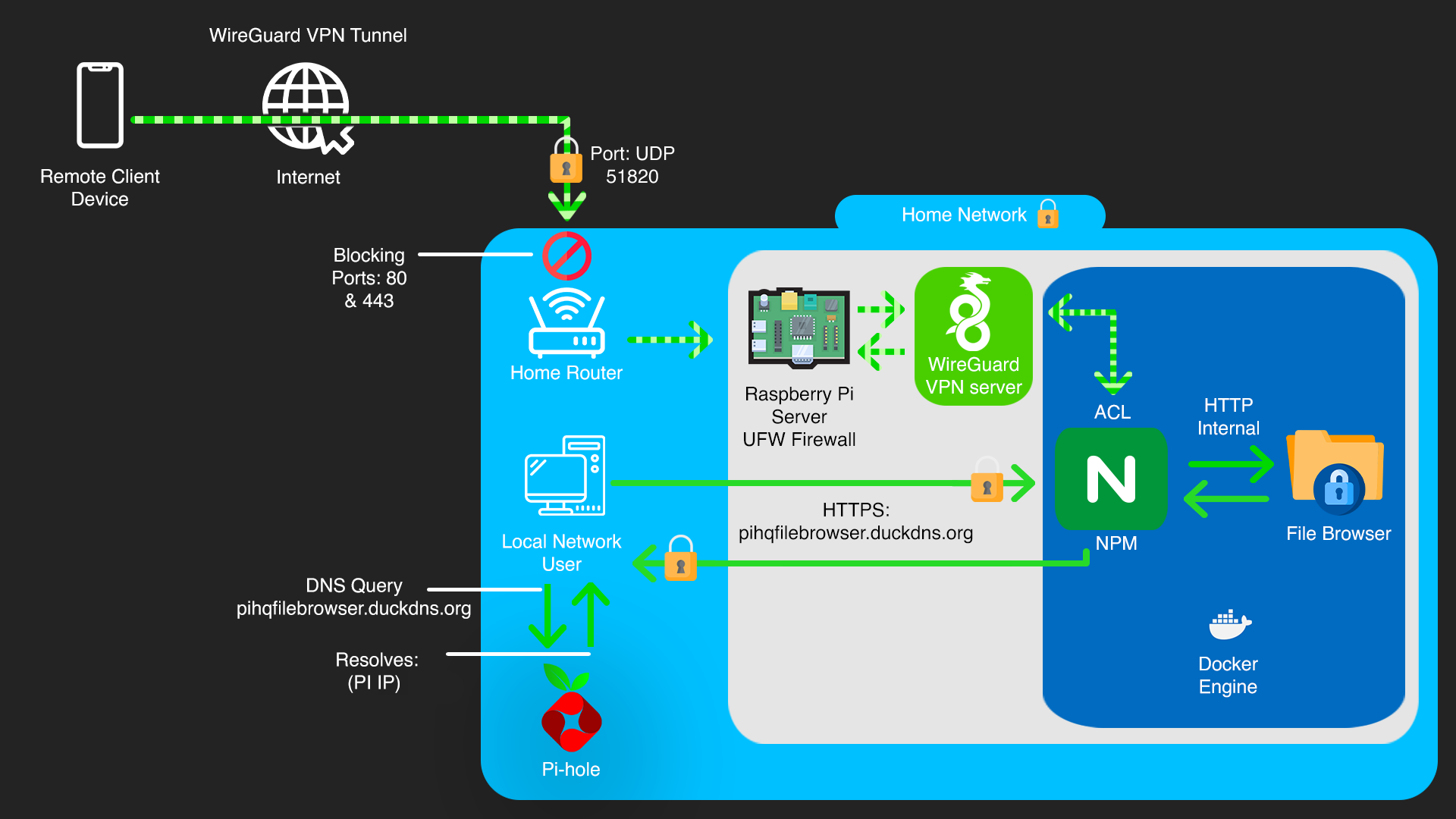

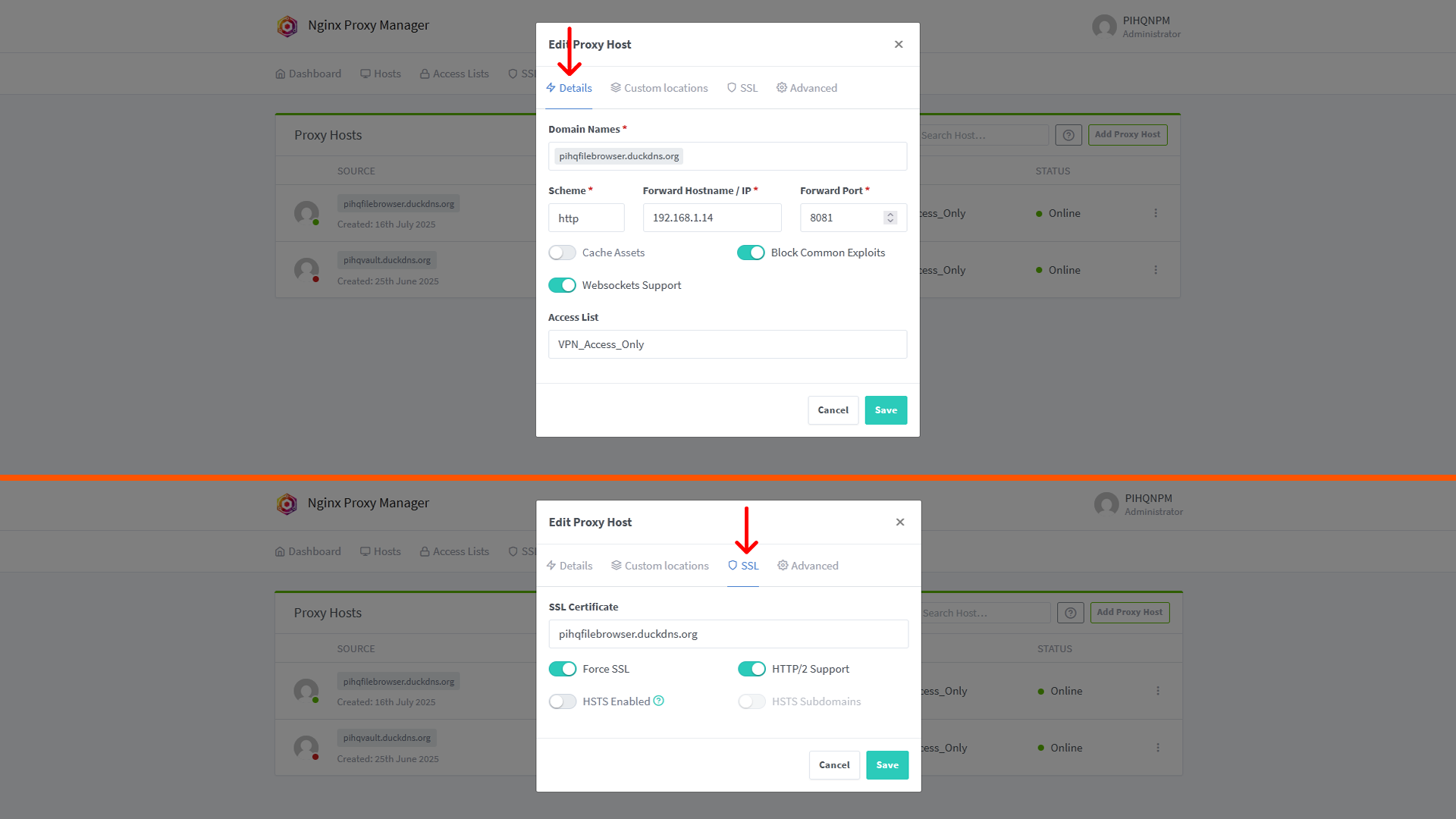

Within the NPM web interface, a new Proxy Host was created for File Browser. This involved specifying the domain pihqfilebrowser.duckdns.org and pointing it to the internal IP and port of the File Browser container. NPM's integrated Let's Encrypt functionality was used to obtain and automatically renew SSL/TLS certificates for pihqfilebrowser.duckdns.org via the DNS-01 challenge method, leveraging DuckDNS API credentials. Local DNS records for pihqfilebrowser.duckdns.org were added to Pi-hole, ensuring that devices on the local network resolve this domain to the Raspberry Pi's private IP address. An Access List was applied to this proxy host within NPM, restricting access to only the IP range assigned to VPN clients, ensuring that only devices connected via the WireGuard VPN could reach the File Browser web interface. No router port forwarding was configured for HTTP/HTTPS traffic to the public internet; external checks (e.g, via canyouseeme.org) confirmed that ports 80 and 443 remained closed to the internet. All external access relies on a prior VPN connection to the home network.

Challenge 1: Hard Drive Spin-Down Configuration

Ensuring the external HDD would spin down when idle to conserve power and potentially extend its lifespan proved challenging due to various background processes and USB-to-SATA bridge behaviour.

Solution: Explored and configured hd-idle for power management. This involved meticulous debugging of hd-idle service configurations and monitoring disk activity with iotop to identify and mitigate any processes preventing spin-down. (Note: This specific challenge highlights persistence in troubleshooting complex Linux system behaviours.)

‍

Challenge 2: Securely Accessing Web Services Remotely

Providing secure access to File Browser from outside the local network required a robust and controlled method without directly exposing internal services to the public internet.

Solution: Implemented Nginx Proxy Manager to provide local HTTPS access for File Browser. For external access, a WireGuard VPN connection to the home network is required. This ensures File Browser's internal port is never directly exposed to the internet, and all remote traffic is encrypted via the VPN tunnel.

• Network Security: Practical application of firewall rules (UFW), secure network segmentation, and understanding of network traffic flow within a local and VPN-connected environment.

• Access Control: Implementation of SSH key-based authentication, robust user account management, precise file/directory permissions (chmod, chown), and configuration of Access Control Lists (ACLs) within Nginx Proxy Manager to enforce the principle of least privilege.

• Application Security: Secure deployment of web applications (File Browser) behind a reverse proxy (Nginx Proxy Manager), enabling HTTPS/SSL for encrypted communication, and understanding secure configuration practices via a GUI.

• Vulnerability Management: Recognizing the critical importance of regular system and software updates to patch known vulnerabilities and maintain system integrity.

• Risk Assessment & Mitigation: Identifying potential threats and attack vectors to a self-hosted system and implementing layered security measures to reduce those risks effectively.

• Linux System Administration: Proficiency in managing a Linux-based server environment, including command-line operations, service management (systemd), file system navigation, and script execution.

• Container Security: Utilizing Docker for application isolation, understanding container networking, and recognizing the security benefits of containerization. Experience with Dockerized applications like Nginx Proxy Manager.

• Problem Solving & Debugging: The iterative process of diagnosing, troubleshooting, and resolving complex configuration and service issues (e.g, with hd-idle or Docker container issues), demonstrating strong analytical skills.

• VPN Integration: Understanding how to securely integrate a self-hosted service with a VPN for remote access, enhancing overall security posture by avoiding public exposure.

• Local DNS Management: Practical experience configuring and managing local DNS records (e.g, in Pi-hole) to ensure proper hostname resolution for internal services.


• Implement Fail2Ban: Deploy Fail2Ban to automatically block IP addresses that show signs of malicious activity, such as repeated failed login attempts to SSH, Samba, or Nginx Proxy Manager's web interface.

• Automated Encrypted Backups: Establish a robust, automated, and encrypted backup solution for the data on PIHQ_Storage to an off-site location or cloud storage, protecting against data loss from hardware failure or ransomware.
